RINQ GNSS Correctional Streaming Service

Product Summary

Suitable Industries:Construction Industry/Manufacturing Industry/Infrastructure Management

RINQ / RTCM Internet Neo Query is a cloud based GNSS Correction Service for HDT280. Access high accuracy single frequency RTK positioning from Base Station HDT280 for multiple rover stations.

Features

RINQ Main Features

  • Utilising private cloud servers to perform relative position calculation and measurement for centimetre level accuracy RTK-GNSS Positioning.
  • Simple set up requiring only a base station with HDT280 + Antenna and rover stations with HDT280 (Or a GNSS receiver) + Antenna
  • HDT280 Built in 3G/LTE Transceiver, no necessary third party extension required.
  • 1 HDT280 / 999 Rovers stations
  • Using HDT280 as Rovers allow for utilisation of 2 GNSS (GPS+GLONASS or GPS+BeiDou)
  • Correction Data Streaming is done though Akasaka Tec Cloud Service
  • NMEA0183 format Single Frequency RTK-GNSS Positional Data Output (Usable by HDT280)
  • Max 5Hz NMEA Sentences (GGA, GNS, GSA, GSV, RMC, VTG, ZDA) Output

※Accuracy and precision is affected by the baseline length
※Useable in 3G/LTE Covered Area

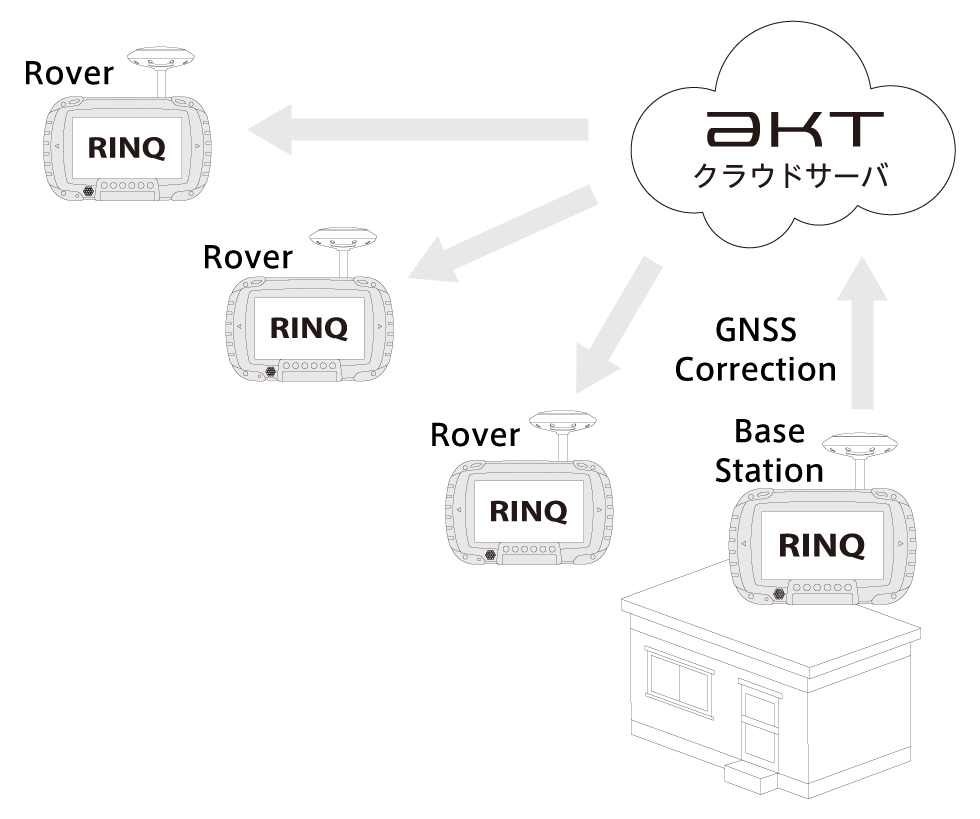

System Overview

RINQのシステム構成イメージ

Single Base Station for Many Rovers
Using only a single base station to send multiple correction data for a much more efficient system, especially when multiple rover stations are in operation at the same time.

Use Case Examples

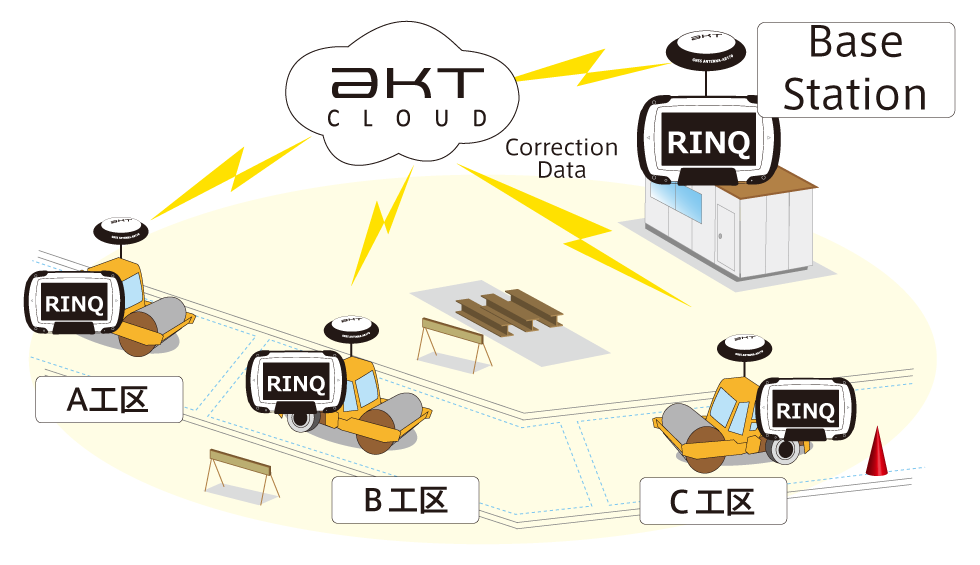

Case 1: Construction Operation (e.g. SmartRoller)
RINQを工事現場で使う場合
GNSS correction data is streamed from a single HDT280 in base station mode to multiple rover stations within 10km radius of the base station via WEB.

Cloud Compaction Management System SmartRoller [Page Link]

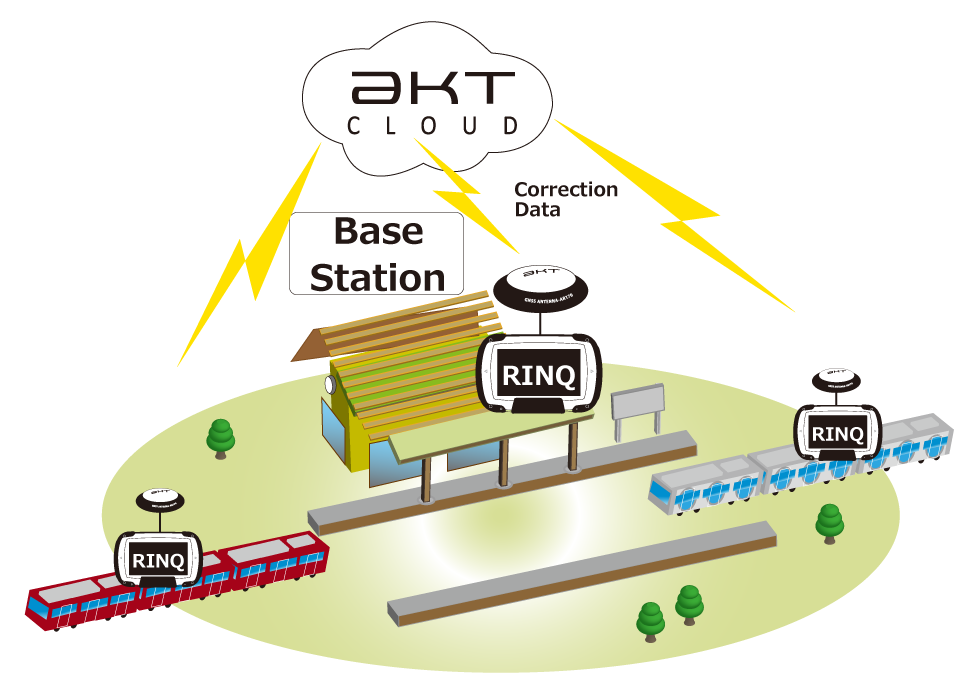

Case 2: Train Tracking
RINQを列車運行で使う場合
Get the real-time position of trains to easily manage train timing safely and accurately.

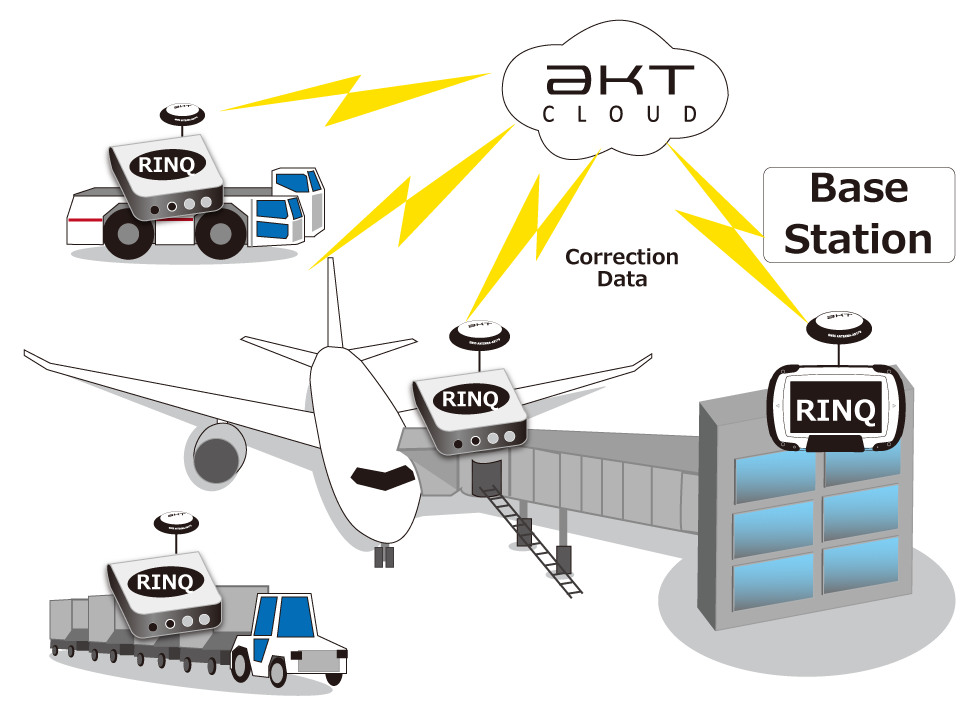

Case 3: Airport Management (e.g. RTF300 RTK-GNSS Receivers)
RINQを空港で使う場合
Reduce the need for multiple base stations for automatic airport disembark gate and other operations.

Difference Compared to Traditional Network Based RTK-GNSS

  • RINQ offsets the base station and rover station bias.
  • It is possible to switch to BeiDou Correction Data by changing the settings on the Base Station
  • Viable into the future, by using BeiDou satellites, which provide services in east asia, south east asia and india with projected increase in satellites.
  • By using HTTP Protocol REST API, expandability of rover stations is easy.

Single Frequency RTK-GNSS Data

1周波RTK-GNSS評価デ-タグラフ
Compared to traditional single frequency positioning methods, RTK-GNSS have a shorter cold boot and calibration time, with a wider range of usable satellites comparable to traditional Dual-Frequency positioning for usability anytime anywhere.

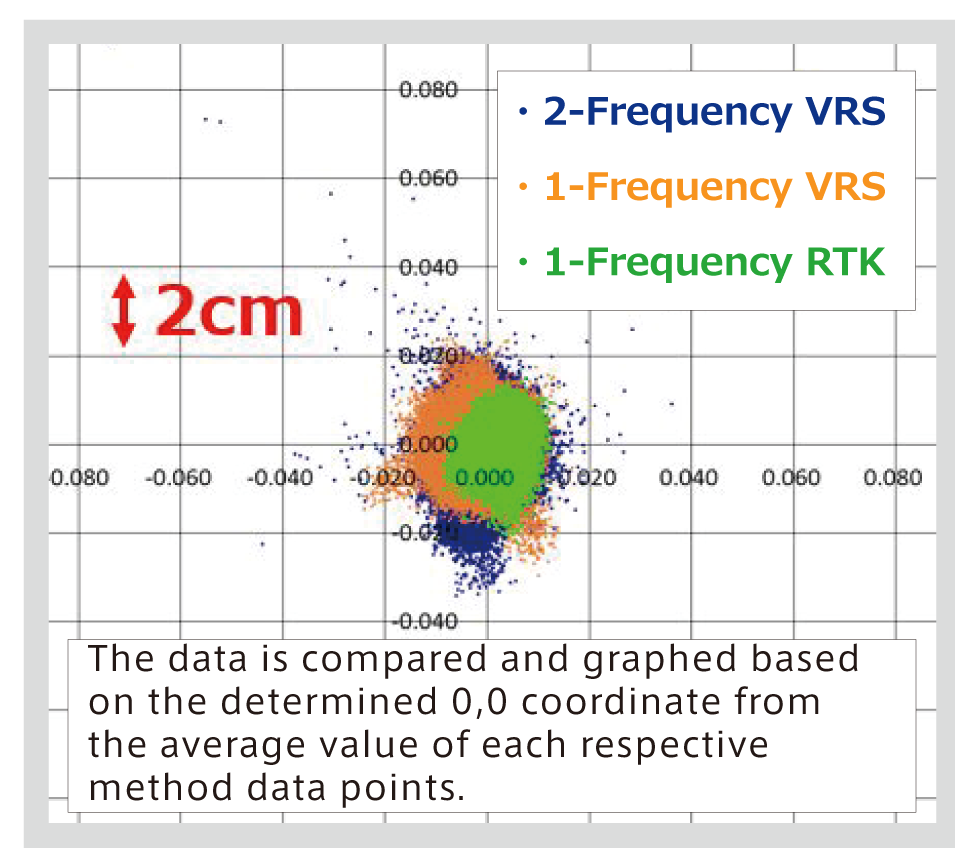

Spread Observation (1Hz over 24 Hours)

Standard Deviation

X Y Z

Dual Frequency VRS (GPS, GLONASS) 0.006m 0.004m 0.012m

Single Frequency VRS (GPS, GLONASS) 0.005m 0.004m 0.013m

Single Frequency RTK (GPS, BeiDou) 0.003m 0.003m 0.008m


Initialisation Time

use Satellite Shortest Time Average Time Satelites
Dual Frequency VRS Base VRS GPS, GLONASS 1 Second 1 Second 14~15
Rover Dual Frequency Receiver
Single Frequency VRS Base VRS GPS, GLONASS 6 Seconds 106.1 Seconds 11~12
Rover HDT280
Single Frequency RTK Base HDT280 GPS, BeiDou 6 Second 6.8 Second 13~15
Rover HDT280


Cycle Slip Recovery Time

use Satellite Shortest Time Average Time Satelites
Dual Frequency VRS Base VRS GPS, GLONASS 3 Second 6.1 Second 12~15
Rover Dual Frequency Receiver
Single Frequency VRS Base VRS GPS, GLONASS 6 Second 10.2 Second 12
Rover HDT280
Single Frequency RTK Base HDT280 GPS, BeiDou 6 Second 8.5 Second 17
Rover HDT280

※The values ​​shown are based on our own experiments and do not guarantee performance.
※Initialization time and cycle slip recovery time are the average of 10 times.
