Bipod Pole Set Surveying Accessories
Product Summary
Suitable Industries：Construction Industry／Manufacturing Industry／Infrastructure Management
Bipod Pole Set is an accessory for RTK-GNSS positioning operations. Our bipod pole set uses a button type extender, pin type height setter and a built in leveller for easy levelling and adjustment. 200mm keyed height adjustment for RTK Pole for easy adjustment.
Features
Bipod Pole Set Main Features
- RTK Pole and 2 Legs Attachments
- Adjustable RTK Pole Height
- Button Type Leg Extension for Stabilisation
- Built in Leveller
- Specialised Carrying Case
Product Overview

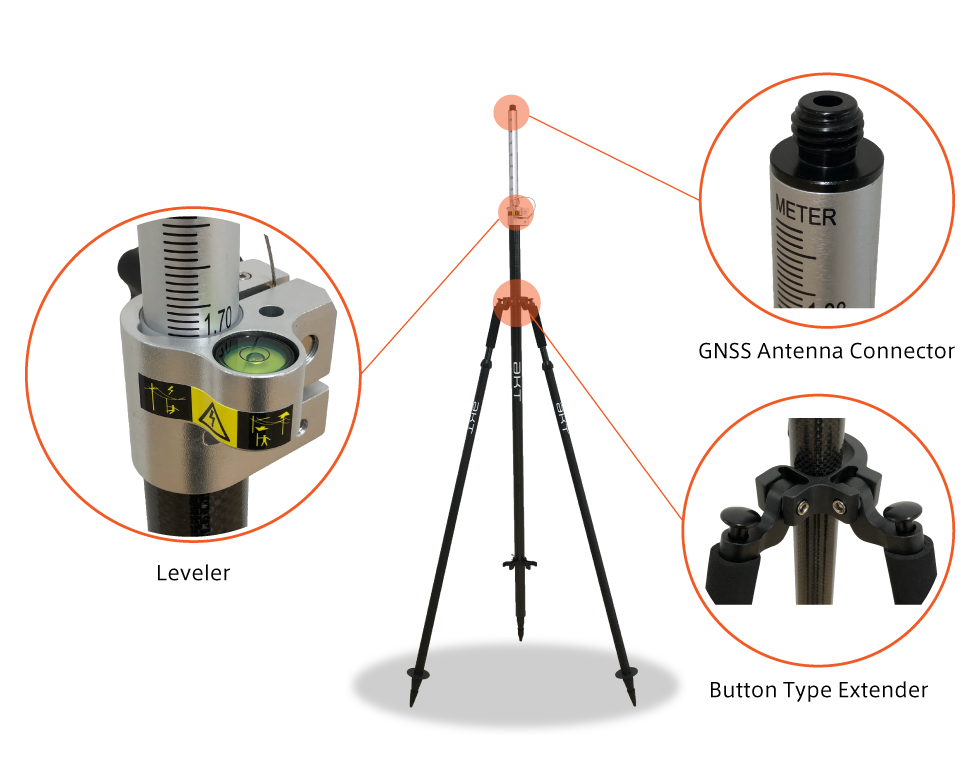

Level adjustment and performing surveying operations are made easy with a built in leveller and button type leg extender.
Specification
RTK Pole
| Length | Extended 2600mm, Retracted 1480mm |
| Weight | 1.2kg |
| Diameter | Bottom @33mm, Top @28mm |
| Material | Carbon (Bottom), Aluminium (Top) |
| Attachment | Level |
Bipod
| Length | Extended 1800mm, Retracted 1080mm |
| Weight | 2.5kg |
| Compatible Diameter | 21mm～38mm |
| Material | Aluminium |
Carry Case
| Dimensions | 180Φ x 1630 mm |
