U7000UJC181 Digital CR Wireless Transceiver

Product Summary

Suitable Industries：Construction Industry／Manufacturing Industry／Infrastructure Management

The U7000UJC181 is a 3R Classified Convenience Radio Wireless Transceiver that is designed to be paired with an RTK-GNSS receiver to send GNSS Correction data from a Base Station.

Features

U7000UJC181 Main Features

Digital Convenience Radio Wireless Transceiver
Design for High Accuracy RTK Positioning Operation
5W/2W/1W Variable Output
Automatic Channel Finder

Accuracy to the Centimetre

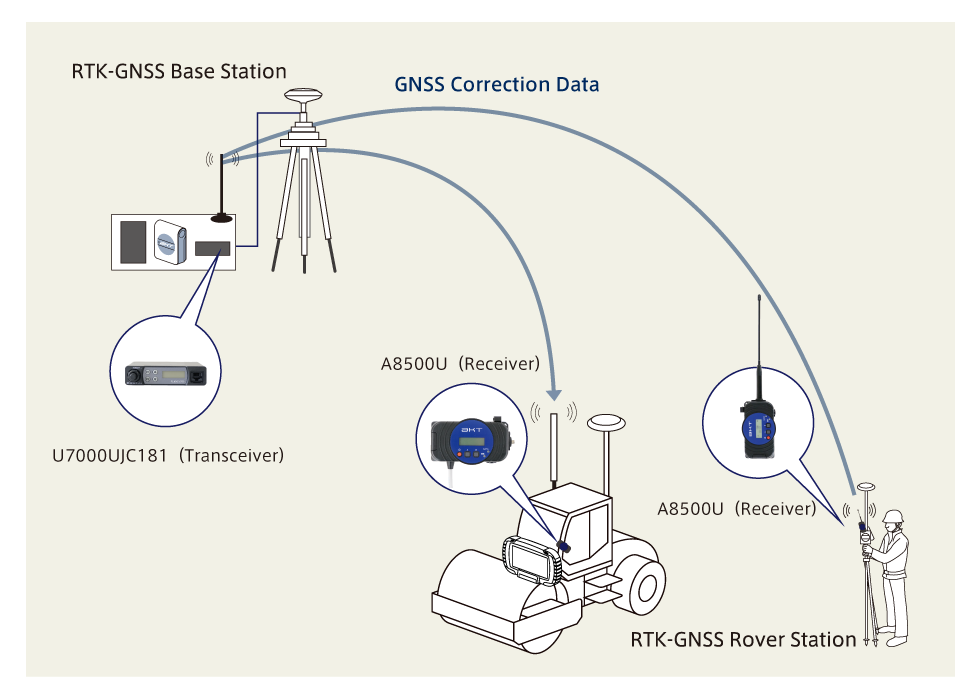

デジタル無線方式RTK測位

Used in conjunction with an RTK-GNSS Receiver to provide GNSS Correction Data wirelessly and provide Centimeter Accurate RTK Position for nearby rover stations. U7000UJC181 can also function as a receiver, but please be aware that a dedicated receiver（A8500U）should be used for this function instead.

※The wireless transmission frequency used is not stipulated under Transmission Laws, hence it requires no license and can be used by anyone with minimal paperwork.

A8500U

A8500U　製品写真
The A8500U is a specialised compact receiver used to receive GNSS Correction Data to support RTK Positioning. Paired with an RTK-GNSS receiver to receive correction data from a nearby base station wirelessly for cm-level RTK Positioning. The A8500U is specially built by us to function with Sunshine Techno Wireless Transceiver Model U7000UJC181.

A8500U Compact Wireless Unit

Specification

Model	U7000UJC181
Classification	3R
Uses	Light business/leisure/personal
Frequency	351.2000MHz ～ 351.38125MHz (Digital simple radio registered station 30 CH)
Antenna Output	5W/2W/1W Adjustable
Modulation Mode	4FSK
Wave Type	F1C/F1D/F1F/F1E
Transmission	Unidirectional, one-way or broadcast
Interface	RS-232C
Transmission Speed	4.8kbps
Power	DC10V ～ 16.5V
Power Consumption	Transmitting: ≦2.5A (5W) , ≦1.5A (1W) Standby: 80mA , Sleep: ≦3mA
Operational Temperature	－20℃ ～ 60℃
Dimensions	27 x 115 x 145 mm
Weight	580g
