NetBreeze 4Ⅱ Ship Internet Communication Service
Product Summary
- Sea
NetBreeze 4 II is a network and communication system that is primarily used out in the coastal areas for tankers and cargo ships.
Features
NetBreeze 4 II Main Features
- Simple Installation, Easy to Use
- No Bandwidth Limitations on Service (Outside of Peak/Heavy Load)
- Useable within NTT Docomo Service Area
- Working Environment Improvement in Ships Policy Compatible
Connection to the Internet

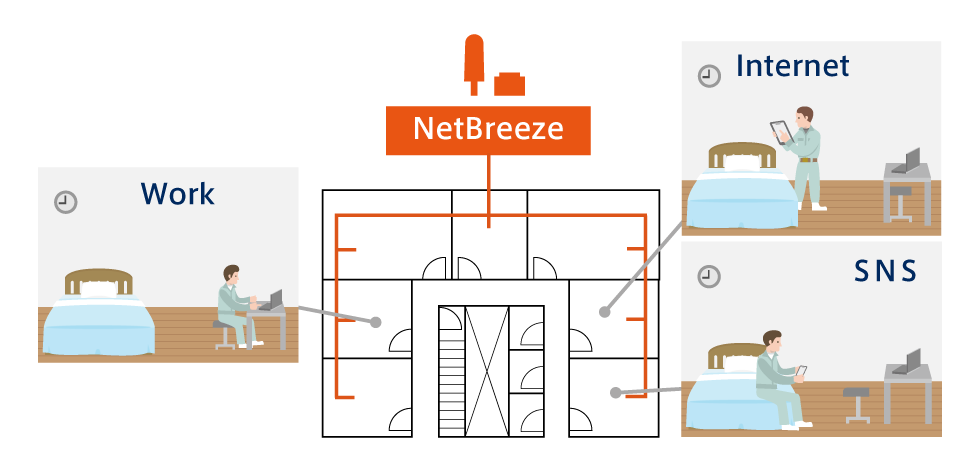

Employing the NetBreeze 4 II system can have drastic improvement to the crew morale by providing easy to access internet connection. The System improves upon older methods by placing the antenna outside for greater gain.
Simple Installation

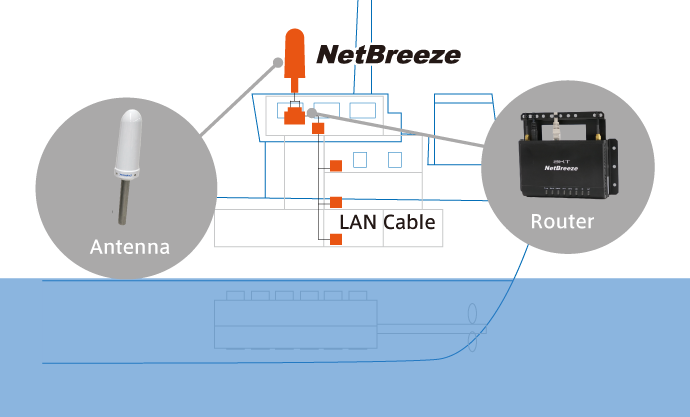

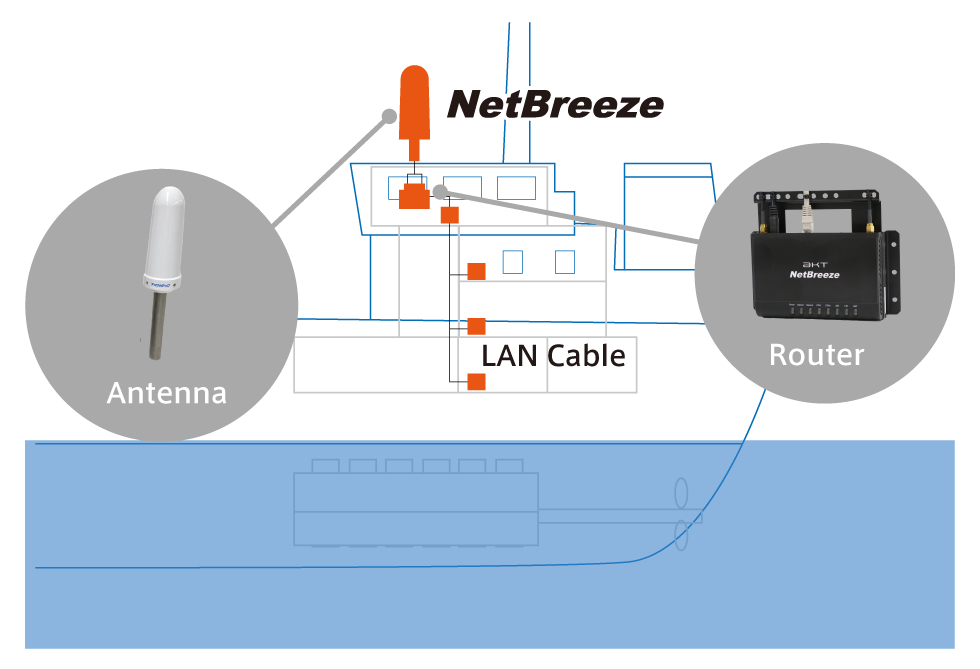

NetBreeze 4 II system only requires 3 components as a bare minimum, Antenna, Antenna Cable and a Router. Simply connect VIA Lan or Coaxial cable to provide service to every room in the ship.
Automatic Reconnection
There is no need to manually reset the router to restart service in the event of weak signal or complete signal loss by utilising the inbuilt WAN Heartbeat functionality.※1
※1 This is a function that assists in reconnecting when there is no communication, but does not guarantee continuous connection.
Data Service
NetBreeze 4 II system utilises private IP, giving unlimited freedom to what and where the data is used for.
※ Please contact us if you would like to access the onboard camera and server from land (off the ship).
Utilising NTT Docomo
NetBreeze 4 II utilises NTT Docomo service to provide complete national coverage through LTE, 4G and even the possibility for 5G connection.
※ For details, please refer to “NTT Docomo – Service Area Map”.
Conforms with Working Environment Improvement in Ships Plan
NetBreeze 4 II helps ship builders/owners conform with a motion set in 2009 by the Ministry of Land, Infrastructure, Transport and Tourism to improve working conditions for workers working in ships for a long period of time by requiring ships built hereafter to provide amenities such as LAN and WiFi.

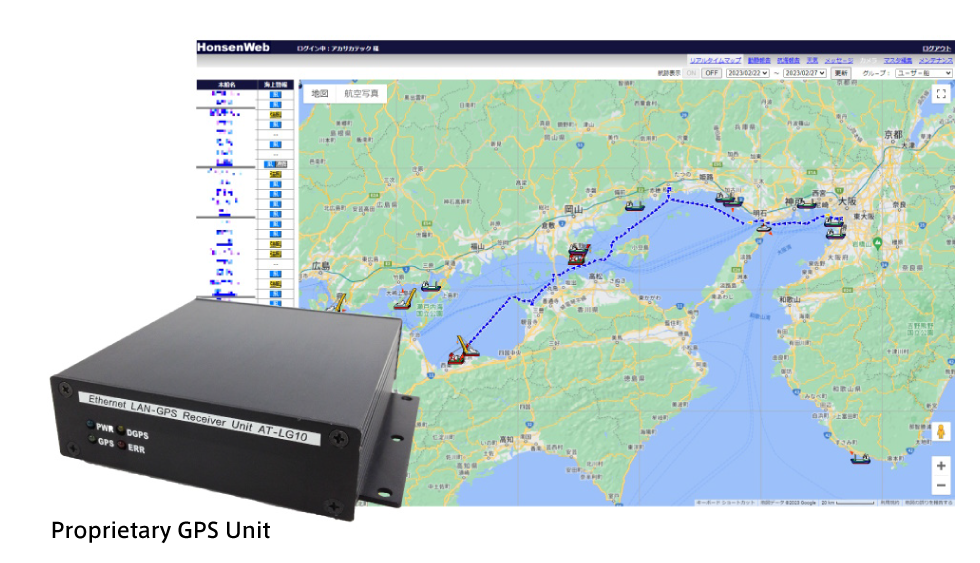

Vessel Positioning Management System HonsenWeb
HonsenWeb is a web based vessel tracking system that tracks the position of a vessel with a special GPS unit installed every 10 minutes. The data is sent to the internet, where it can then be viewed, tracked and recorded through a web browser.
A special GPS unit is included with the installation of NetBreeze 4 II System.
Optional Software
HonsenMail
HonsenMail is a mail management software developed to reduce transmission data cost compared to traditional mailing systems by highly compressing the mail. As this is a standalone software, there is no need to re-setup the application when updating Windows or Outlook. The app is able to function as long as there is an internet connection.
HonsenMail Ship Mail System [Page Link]
Specification
| Compatible Signal | Docomo MVNO 3G/4G (Optional 5G, 3G Service until 3/2026) |
| Speed | @3G 14Mbps Down/5.7Mbps Up | @4G 150Mbps Down/50Mbps Up |
| Interface | 100BASE-T/10BASE-T×2 |
| Rated Voltage | AC 100V(50/60Hz) |
| Output Voltage | DC 12V 1A |
| Power usage | <11W |
| Operating Temperature | 5℃ ～ 45℃ |
| Operating Humidity | 25% ～ 85% (No condensation) |
| Router Functionality | DHCP Server NAT/IP Masking WAN Heartbeat Connection Timeout Timer Hardware Watchdog |
| Usage Area Range | ～ 30km offshore *1 |
*1 This is not a service that guarantees that you will be able to receive a signal anywhere.
You may not be able to receive a signal outside of your carrier’s coverage area or depending on your usage environment.

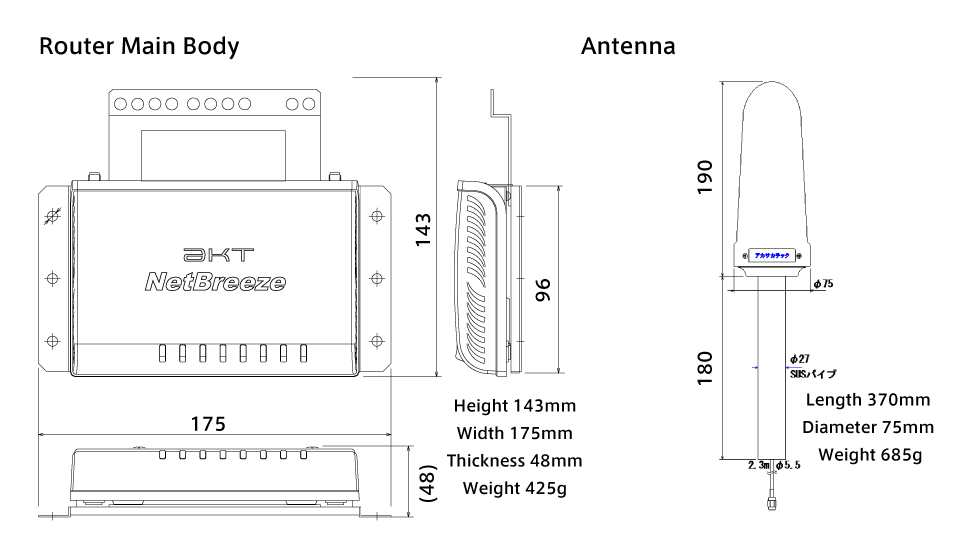

Dimensions
