A8500U Compact Wireless Unit

Product Summary

The A8500U is a specialised compact receiver used to receive GNSS Correction Data to support RTK Positioning. Paired with an RTK-GNSS receiver to receive correction data from a nearby base station wirelessly for cm-level RTK Positioning. The A8500U is specially built by us to function with Sunshine Techno Wireless Transceiver Model U7000UJC181.

Features

A8500U Main Features

• Lightweight and Compact Design
• Design for High Accuracy RTK Positioning Operations
• DC 9V～35V Power Compatible
• Easy Mounting with Special Attachment
• Designed To Function with U7000UJC181

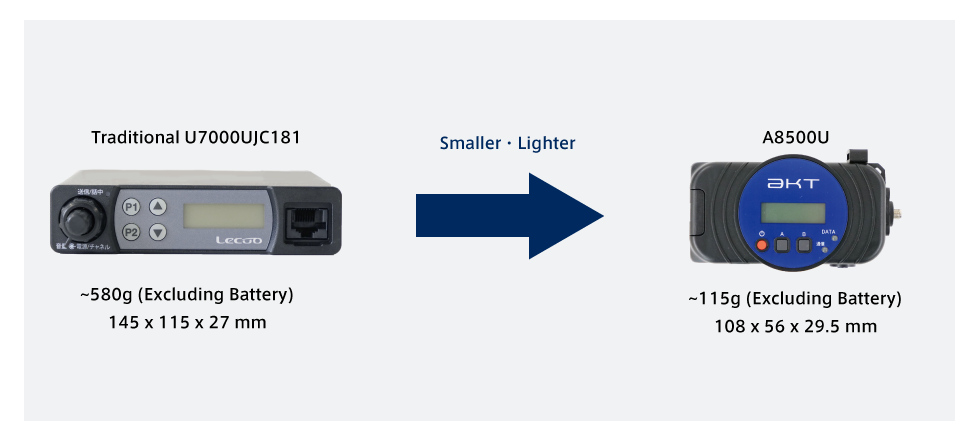

Made to be Light and Small

　　
The A8500U along with its accessories is a lighter and smaller replacement to the traditional U7000UJC181 as a wireless receiver. A8500U is designed to function with multiple form of power delivery with it’s wide power acceptance range (9V～35V), making it compatible with a wide range of battery and power delivery system.

System Example (Surveying)

Using Dual-Frequency RTK-GNSS Receiver『RTF800』Set for Surveying and Positioning. Create a simple and elegant set-up using an easy to install mount and the included cable for an unobstructive, ergonomic system. Combined with an external 1800mAh battery pack to provide 10 hours of continuous use.

•
  Simple and Smart Setup
  Easy to install special mounting attachment with a single cable connection for simple setup and smart design.
•
  Battery Pack
  1800mAh Li-ion battery pack to provide 10 hours of continuous use.

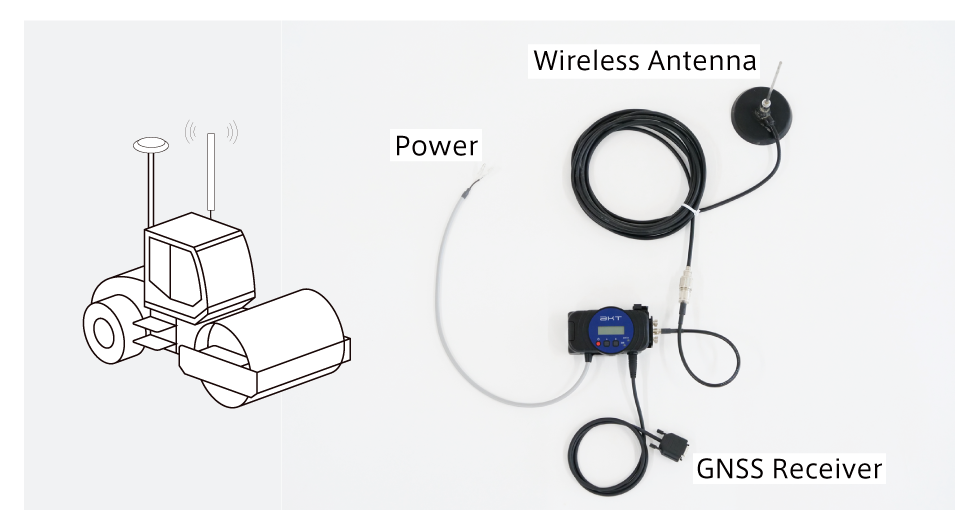

System Example (ICT Construction)

Providing a simple wireless GNSS Correction Data Receiver solution for machinery. Only attach power, included cables and antenna to begin high accuracy RTK-GNSS operations.

•
  Magnet Holder
  Specialised magnetic attachment for easy and convenient placement.
•
  External Battery
  With a wide power acceptance range, reduce the headache of finding the right power source by increasing the number of viable power source options available.

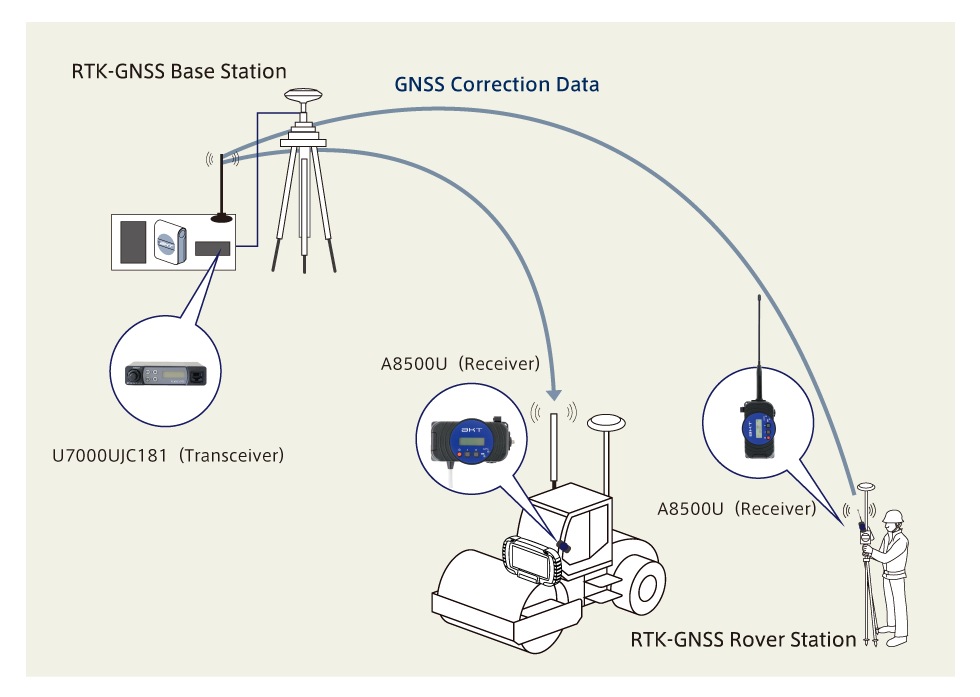

System Overview

A8500U is attached to a rover station to receive GNSS Correction Data from a Base Station equipped with a wireless transceiver（U7000UJC181）providing wireless correction data in poor signal/poor network infrastructure areas.

※The wireless transmission frequency used is not stipulated under Transmission Laws, hence it requires no licence and can be used by anyone with minimal paperwork.

U7000UJC181

A8500U requires U7000UJC181 to function as a signal source.

U7000UJC181 Digital CR Wireless Transceiver

Specification

Dimensions (mm)

Option

■DC850 Power Adaptor

　　
■SMAP-MJ Antenna Replacement Cable

　　
■IF850 Interface Cable

　
■OTHER
