CLAcanS CLAS GNSS Receiver

Product Summary

CLAcanS is a GNSS Receiver that utilises CLAS signal provided by geo-stationary satellite (QZSS) to get cm-level accurate measurements even in remote areas of Japan.
　　　

Features

CLAcanS Main Features

• CLAS Positioning Augmentation Data Receiver
• Higher Accuracy than Traditional DGNSS
• IP65 Rated
• Jamming and Spoofing Resistance
• Power via USB or Battery (Power Rating 5V)

source：QZSS Website
　　 　
CLAS
CLAS stands for Centimetre-Level Augmentation Service. It is a Japan exclusive service that uses QZSS (Quasi-Zenith Satellite System) Michibiki satellites to stream positioning augmentation data directly from satellite for cm-level positioning. Since CLAS Augmentation Data signal is sent through the L6D band, the same as GPS, special equipment must be used to pickout the Augmentation Data.　　
　　
Higher Accuracy than DGNSS
Utilising CLAS Augmentation Data to achieve centimetre level positioning for high accuracy positioning and measuring operation in remote areas of Japan.
　
　
CLAS Low Running Cost
CLAS Augmentation Data Stream is free to use, driving the cost of operations for many high accuracy positioning down.
　　　
　

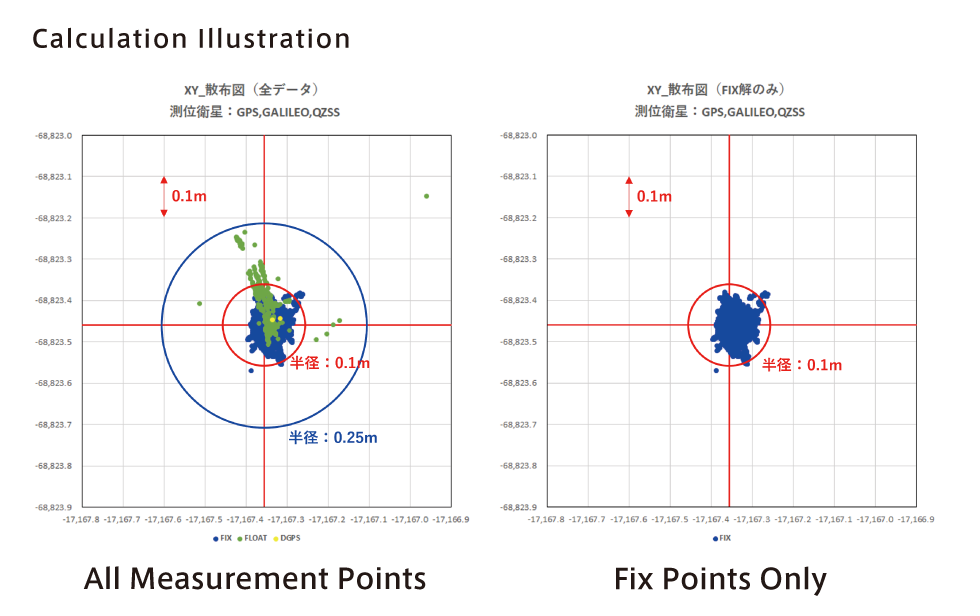

※ 86400 sample data over 24 hour observation at 1Hz
※ Depending on environment and time, measurement may change
　　
　　　

Improved Jamming and Spoofing Resistance

Utilising Septentrio mosaic-CLAS GNSS module with advanced AIM+ tech- nology for a much greater jamming and spoofing resistance.

Septentrio：AIM+ GNSS jamming protection[External link]

　　
Power via USB or Portable Battery
With a voltage rating of 5V, simple USB connection to the PC or a mobile battery will be enough to power CLAcanS.
　
　
Surpasses the Traditional DGNSS and Matching RTK Performance

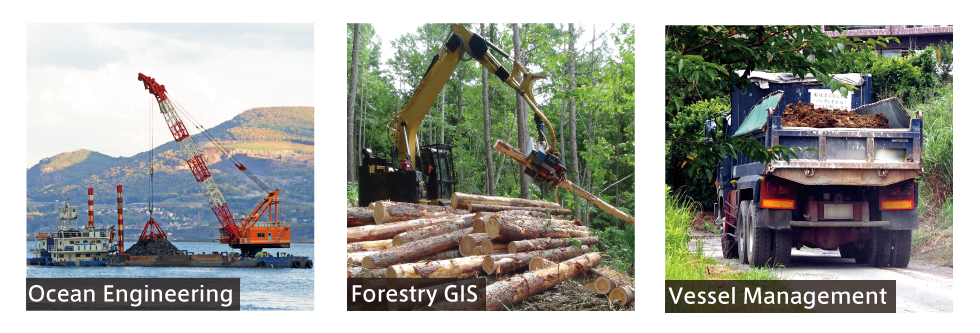

Many industries that relied on DGNSS such as forestry, dredging and earth moving operations would benefit greatly by switching to CLAS.
　　

Specification

Dimensions（mm）
