Astep-1LT／PostProcess Ship’s Speed and Performance Measuring System
Product Summary
- Sea
- Shipbuilding
Astep-1LT is a ship’s speed and parameter measuring system that utilises highly accurate telemetry data from DGPS, gyroscopes, anemometer and more. All the data is then analysed and processed using 「PostProcess」software for data corrections, sorting, analysis and reporting.
Features
AStep-1LT Main Features
- Usable Anywhere
- Unaffected by Weather
- Automated, No Labour Cost
- Simplify Reporting by using PostProcess Reporting Creation
New Features
With the new windows 10 compatibility, Astep basic function has also been upgraded.
With VDR compatibility, Astep integration has been made significantly easier and accessible even in smaller vessels that are missing some base sensors like a gyroscope.
- Windows 10 Compatible
- VDR Compatible
- Analog Data Output Capable
- GNSS Compass Compatible
- PostProcess Excel Format Report Exporting
System Overview
- Utilises a 12 channels DGNSS beacon (1-3m Precision)
- Updated Windows 10 and up compatibility
- Refresh Rate of 1～5Hz
- High Accuracy RTK-GNSS Compatible
- Tidal Manoeuvring Correction Function
- Using gyroscopic data via NMEA to measure ship yaw
- Wind speed and direction via serial input
- Japan Ship Highway Route Map (Optional)
- PostProcess Post Processing and Reporting (Optional)
- Connect VDR via LAN (Compatibility Dependent)
- Analogue Data Output Compatible
- Using GNSS Compass in replacement of Gyroscope if unavailable
Connection Diagrams (Image Examples)

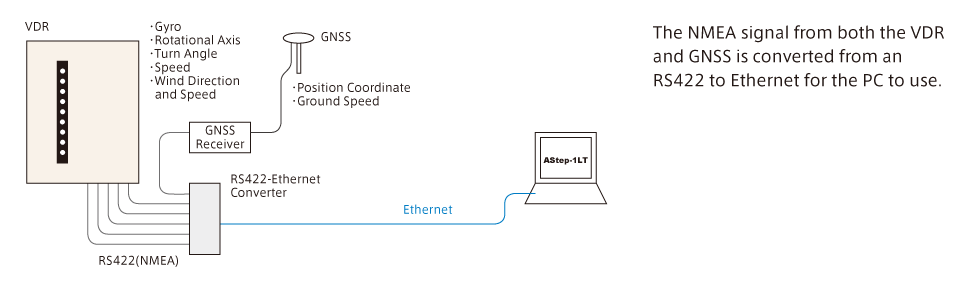

[Traditional 1] VDR RS422 Output

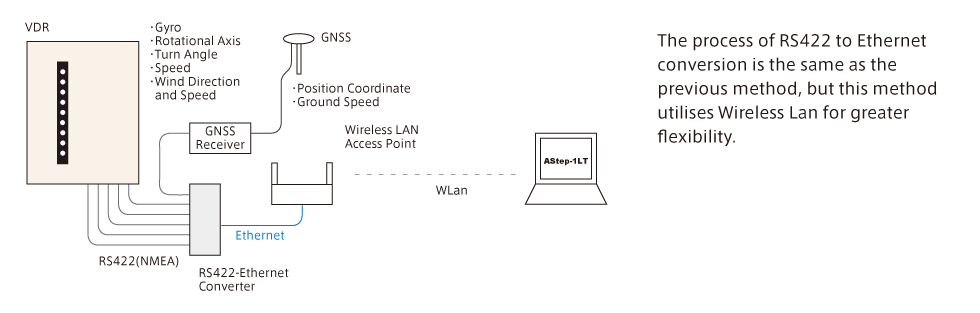

[Traditional 2] VDR RS422 Output, W-LAN Connection

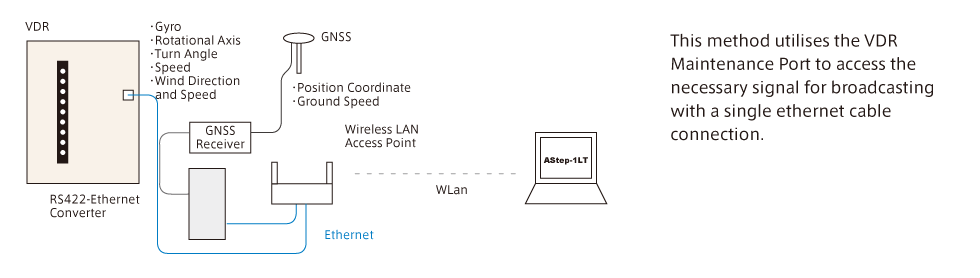

[New Method] VDR LAN Output, W-LAN Connection
Window Example (Image Examples)
Compatible Tests
- Speed Test
- Circling Test
- Z Steering Test
- Stopping Test
- USCG Test
- Forward / Reverse Test
- Thruster Test
- Low Speed Test
- Williamsons Turn Test
- Spiral / Reverse Spiral Test
- Others
PostProcess
PostProcess is an extension software for the Astep-1LT System that processes, analyses and documents data that was gathered.
Data Processing, Analysis and Documentation part consists of an amalgamation of software in one package to process, analyse and document the gathered data.
The layout and format of the report is easily customised via Excel.
Service and Maintenance Program
With the AStep-1LT Service and Maintenance Program, you will receive 1 year service of GNSS Accuracy Certification alongside device functionality checks and the latest minor version updates.
