ClinoAlarm Tilt Monitoring System

Product Summary

ClinoAlarm is a high accuracy tilt monitoring and alert system that is used in operation requiring highly accurate levelling and constant monitoring such as during segmental bridge placements. ClinoAlarm system comes in a water resistant package containing sensor, junction box and wireless transmitter for wireless communication with a nearby terminal.

Features

ClinoAlarm Main Features

• No-licence Wireless Signal
• High Accuracy Measurement to the 0.001°
• Eliminate Human Error, Reduce Labour, Increase Safety

System Overview

　

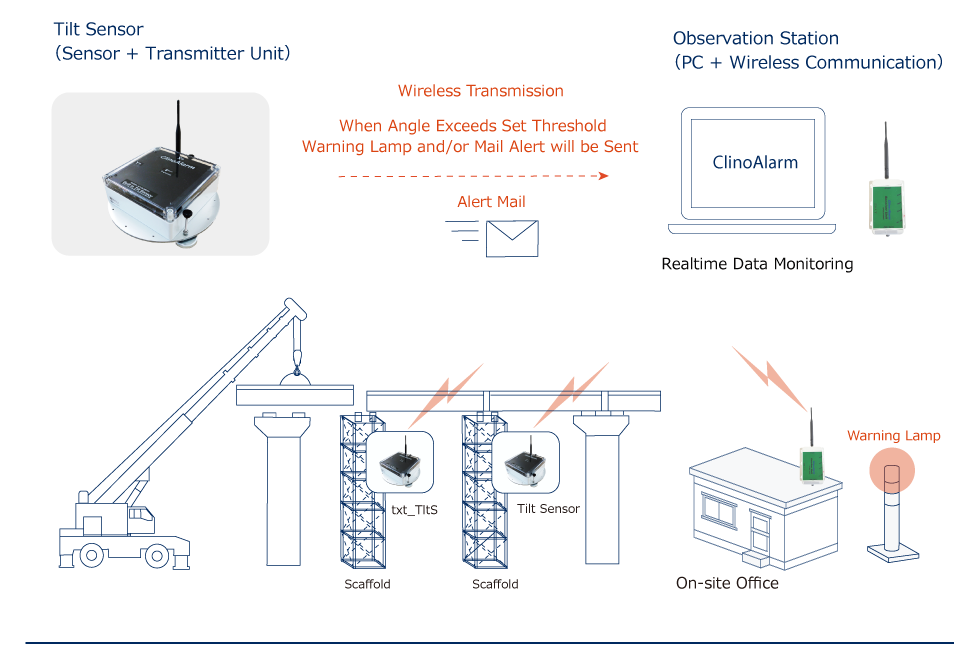

Even in weak or no cellular signal area, constant high accuracy slope/tilt monitoring is possible. A wireless transmitter that comes with the sensor allows a nearby terminal to communicate with the sensor for data transfer.
　　　 　

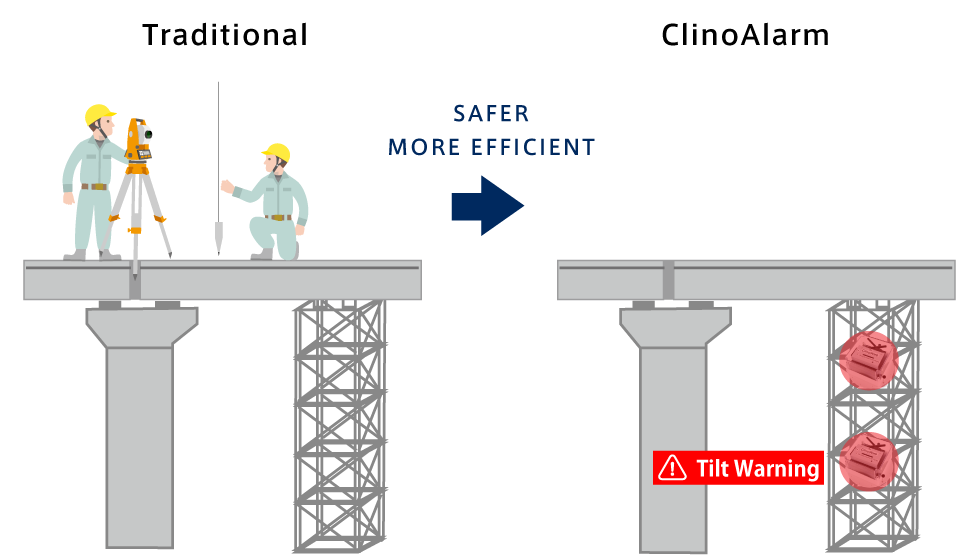

Effective, Efficient, Accurate and Safer Option

　
With a 24/7 0.001° resolution in X and Y axis monitoring, risky and labour intensive slope monitoring using TS or hand measurement devices are no longer necessary.
　

System configuration

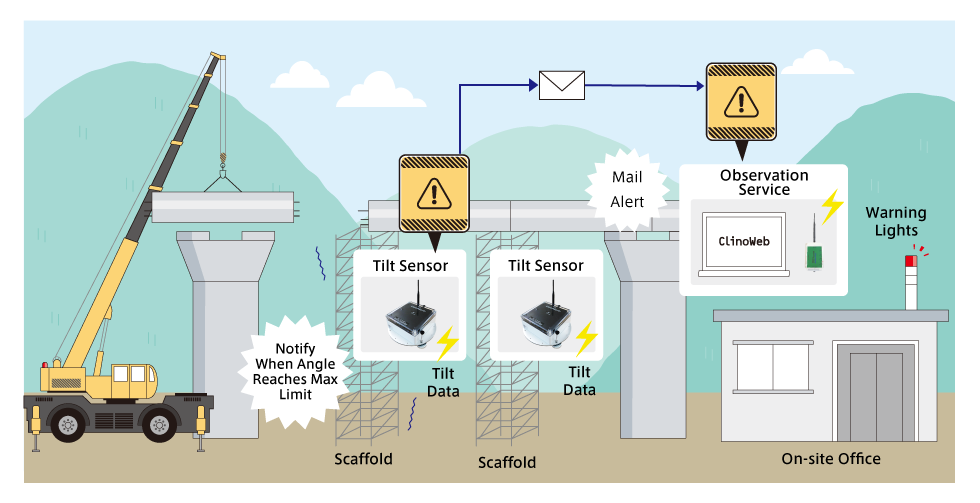

Construction Scaffolding Tilt Monitoring (Image Example)
　

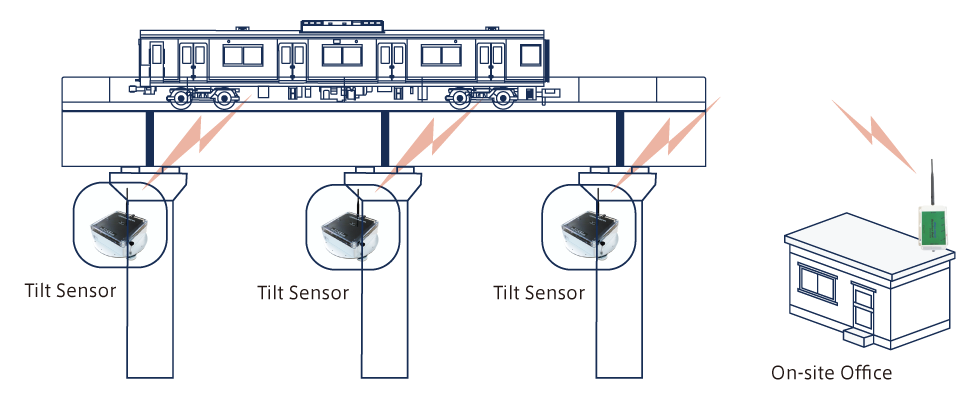

Train Track Bridge Tilt Monitoring (Image Example)
　

• Dual Axis Tilt Monitoring
• Wireless Data Transmission
• 5° Measurement Scope
• Max 8 Simultaneous Running Sensors per 1 Terminal

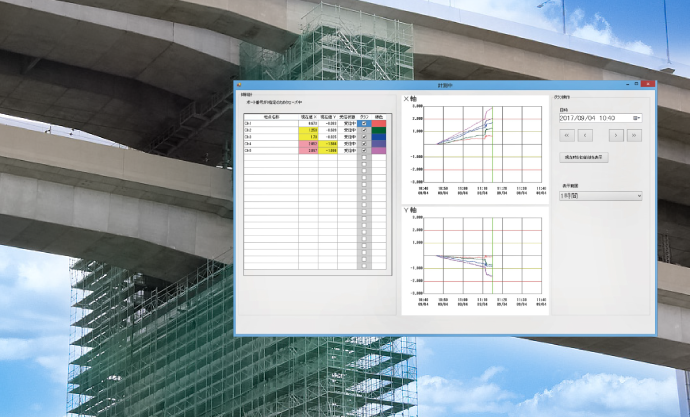

Data Monitoring Screen

• Visualise Measurements or Analyse the Raw Data in Different Timeframe (1Hour ～ 1 Month)
• Focus Only on Selected Monitoring Sensors
• 3 Stage Warning Lamp Setting
• Set Mail Recipient (5 Maximum)
• Tilt Records
• Data Offset Settings

Examples

Supporting structure monitoring, bridge support monitoring, caisson tilt monitoring.
　　

Specification

Tilt Sensor

Wireless Transmitter

Important Points

• Sensor must be placed on level ground
• Permanent constant monitoring stations total scope are only 5° maximum
• AC Power Required
• 920MHz Wave is used for transmission
• Line of Sight is required for wireless transmission
