ClinoWeb Cloud Based Tilt Monitoring System

Product Summary

ClinoWeb is a remote high accuracy tilt monitoring and alert system that is used in operation requiring highly accurate levelling and constant monitoring such as during segmental bridge placements. Tilt data are constantly monitored and uploaded to the cloud as long as there is LTE signal available for remote analysis and recording.

Features

ClinoWeb Main Features

• Set Limits and Fix in Place to Begin Monitoring
• High Accuracy Measurement to the 0.001°
• Eliminate Human Error, Reduce Labour, Increase Safety
• Set 2 Stages for Limits

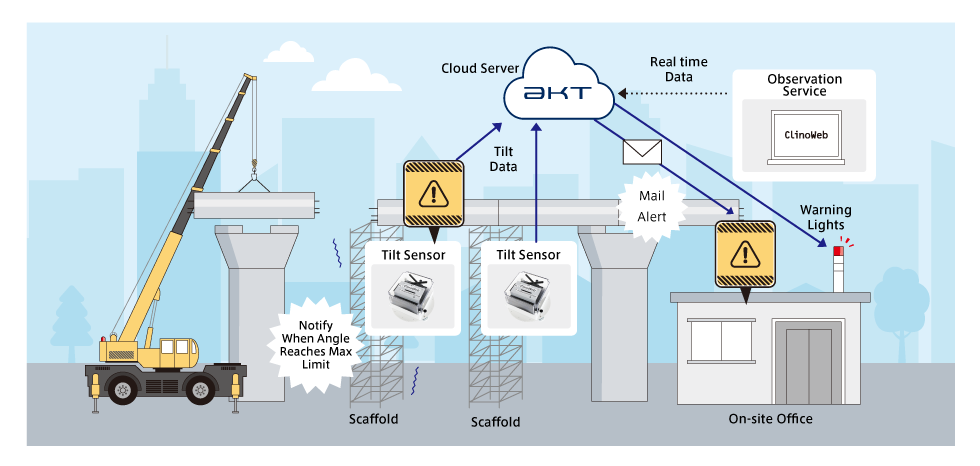

System Overview

　
As long as power is available, the sensor can be placed anywhere. With LTE Connection, remote monitoring and alert are possible.
　

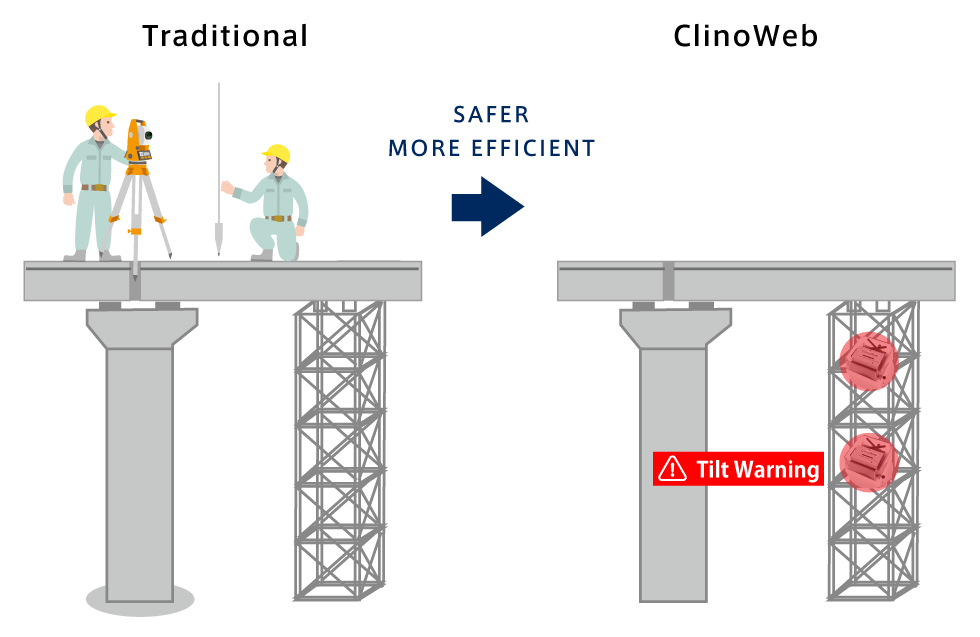

Effective, Efficient, Accurate and Safer Option

　
With a 24/7 0.001° resolution in X and Y axis monitoring, risky and labour intensive slope monitoring using TS or hand measurement devices are no longer necessary.
　

Monitoring

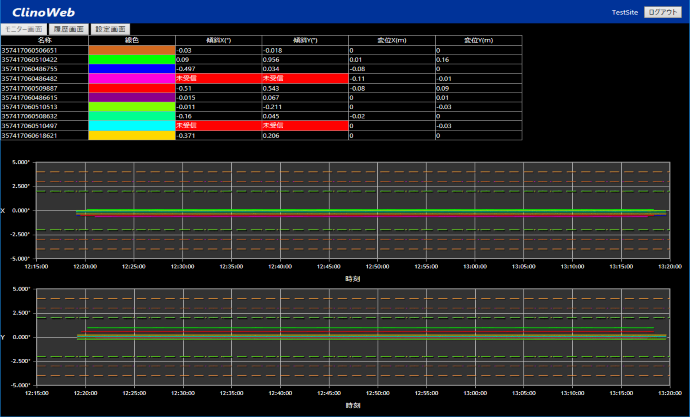

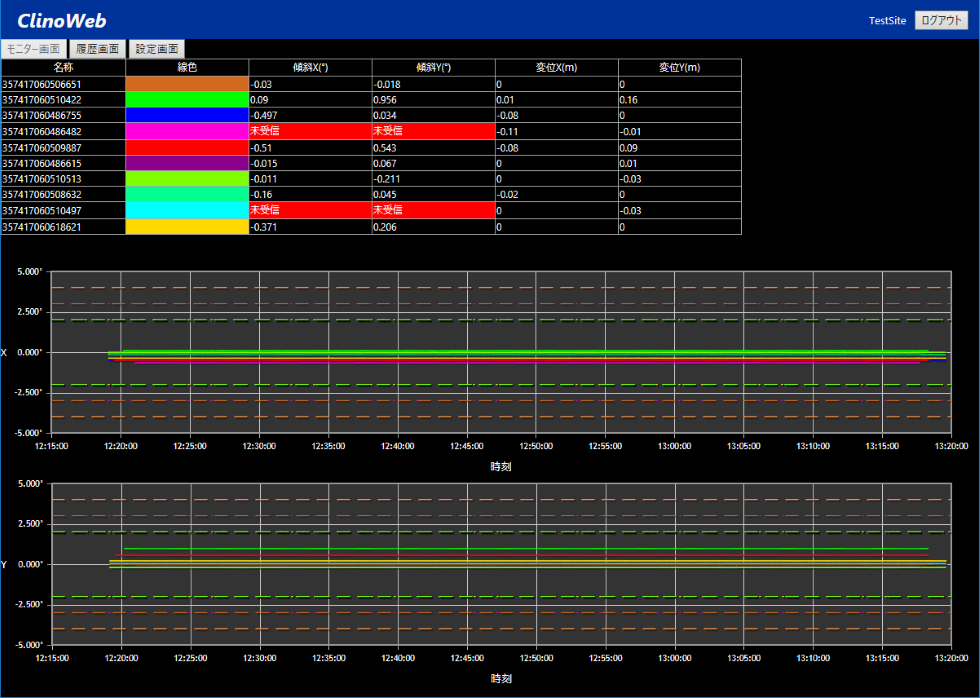

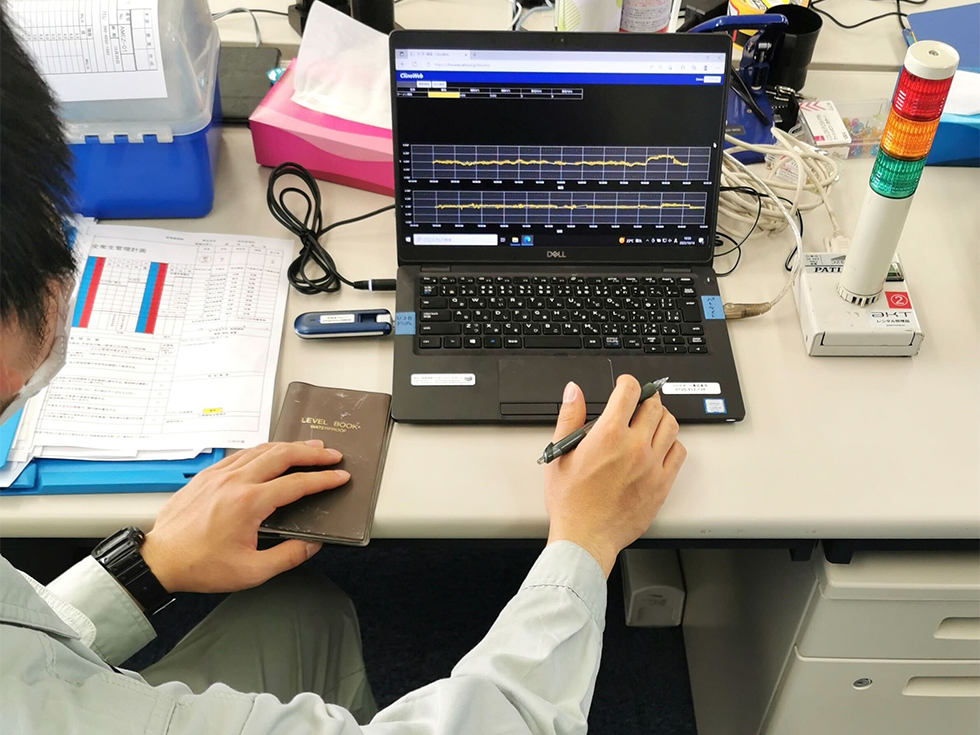

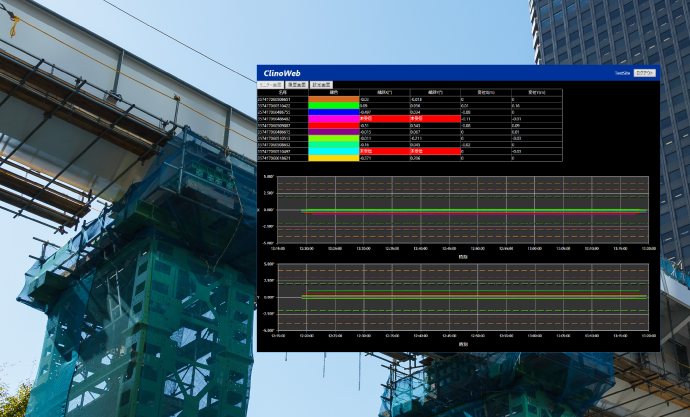

Monitor tilt data in real time through a web based application with a 24/7 alert system that will send an alert message in the event that a set threshold is reached.
　　

• View Real Time Data (Within 1 Hour ～ 1 Week)
• View Data History
• Export in CSV Format
• Set Mail Recipient (5 Maximum)
• 3 Stage Warning Lamp Settings
• Set Tilt Offset

※Patrol lamp function is optional
　　

Example

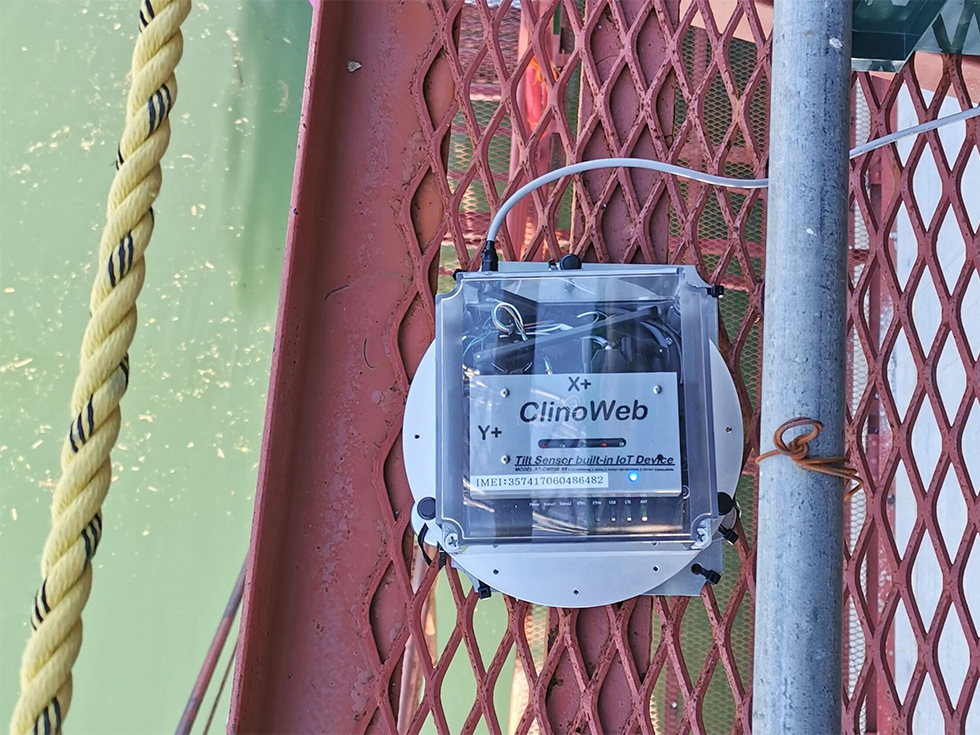

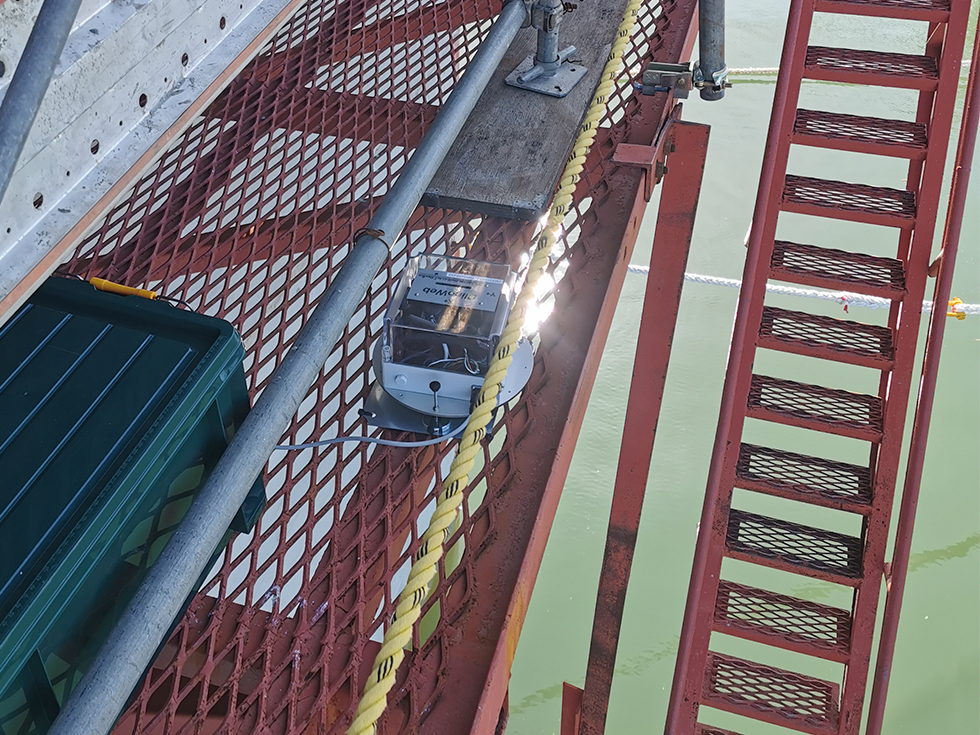

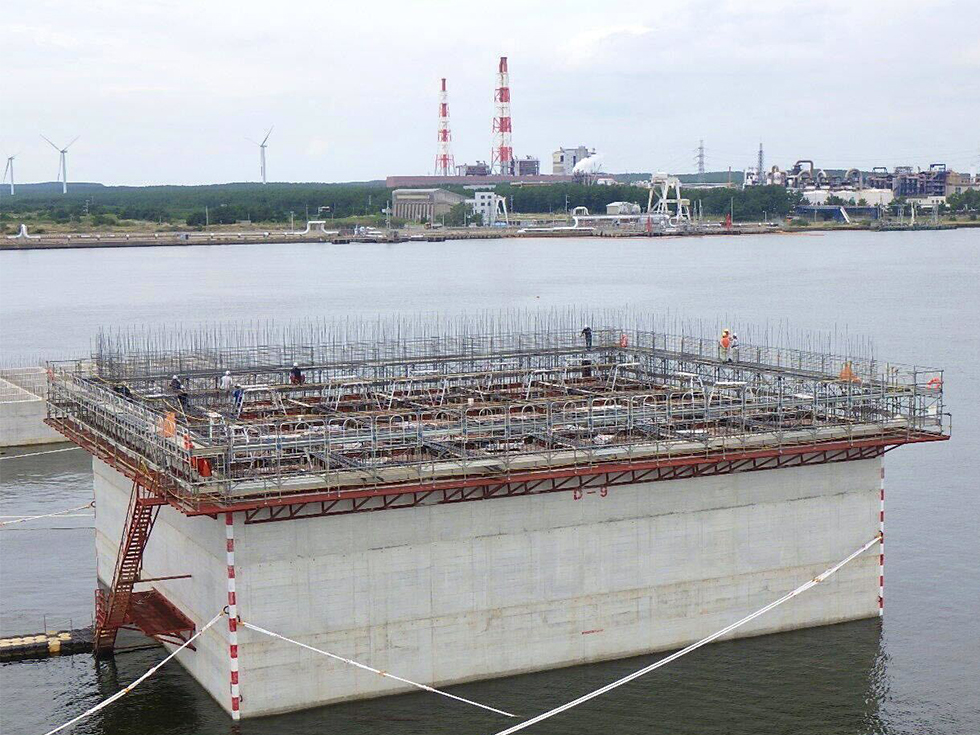

Caisson Tilt Monitoring [WAKACHIKU CONSTRUCTION CO.,LTD.]
　　
Caisson is a freemoving structure built in water as a base structure that will support a greater construction on top. Since caissons are freemoving structures, the risks of tilting during balancing, emptying and filling operation is a dangerous task that require precise and constant monitoring to prevent catastrophic disaster.

Specification

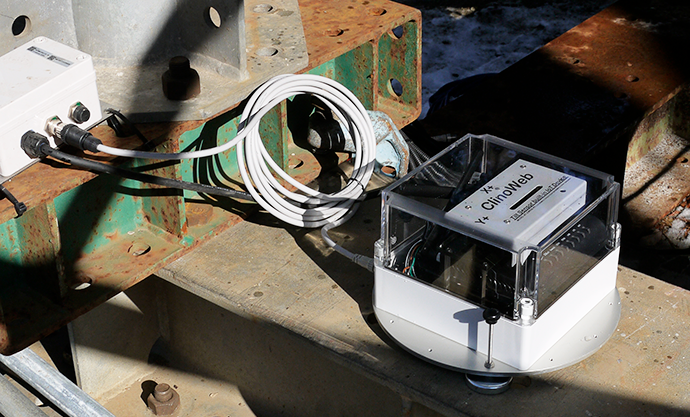

Tilt Sensor

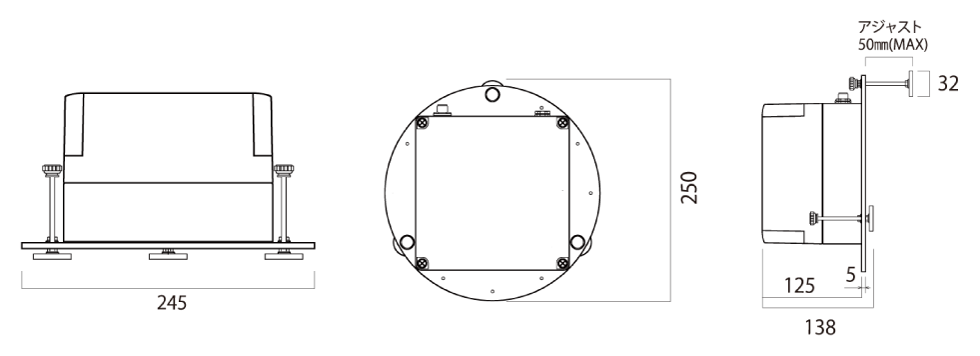

Dimensions

Important Environmental Points

• Sensor must be placed on level ground
• Permanent constant monitoring stations total scope are only 5° maximum
• AC Power Required
