LiS㎥ Ship Cargo Volumetric Measuring System

Product Summary

LiSm³ (Cubism) is a cargo volumetric measuring system for vessels such as the hopper barge, that utilises LiDAR-SLAM to take point cloud data to calculate the volume of the cargo.

Features

LiSm³ Main Points

• Safe 1-Man Weight Measuring Operation
• Fast Calculation
• Utilising ICT for Efficient Operation above the Water

System Overview

　
Start by scanning the cargo using the handheld LiDAR Device and proceed to do a single lap around the cargo. Once done, the 3D volumetric data points (Point Cloud) can then be exported to a PC via USB where calculation can begin.

1-Man Operation

　　
LiSm³ utilises a handy hand-held device to quickly take volumetric data with a single round scan that takes approximately 1 minute to do without having to step foot on the cargo.

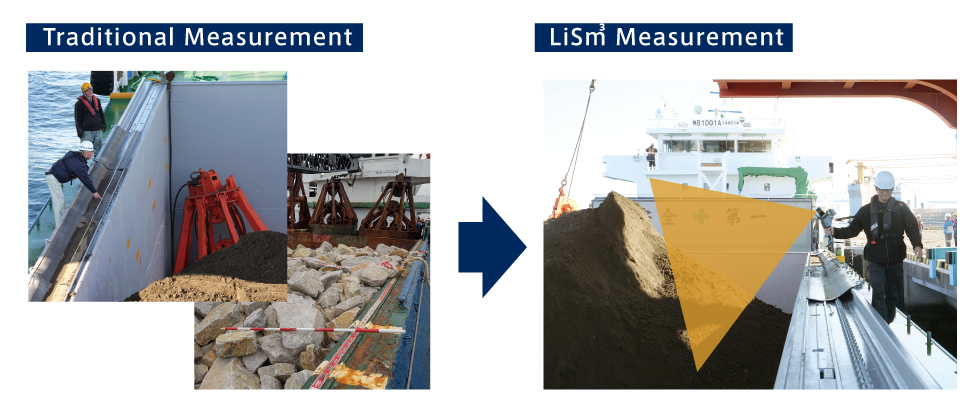

Comparatively, the traditional method of measurement is done manually by using measuring tapes and poles, giving room for errors and increasing the risk of injuries due to carelessness or sudden movements.
　
　
Measurement Method（movie）

Get Quick and Reliable Results​

　　

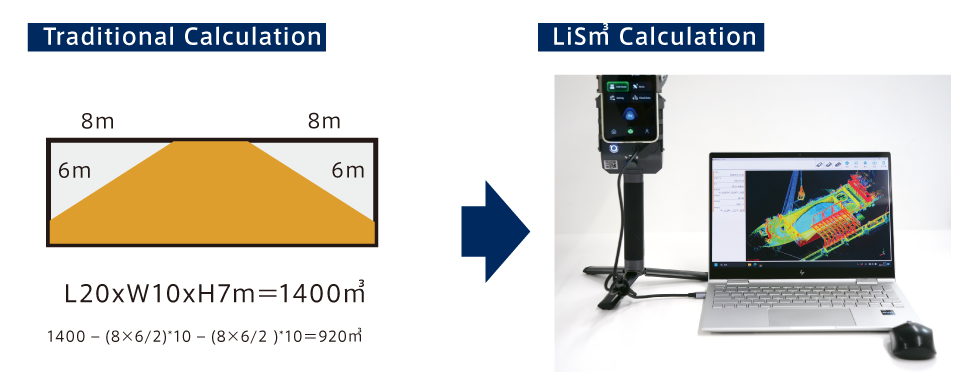

Long gone from the days of using pen and paper to calculate the weight of the cargo, LiSm³ outputs a LAS data set where it can be used to determine the volume of the cargo quickly by connecting to a PC via USB and inputting some parameters.
　
　
Measurement Calculations（movie）

Settings and Output

Resolution and Data Quality Settings
　

　
● Set size of the holding cell
● Set mesh resolution and data quality output

(Mesh resolution is 0.25~2.00m in 0.25 increment)
(Output Quality is set at Highest, Average, Lowest, Most Frequent)

● Holding cell calibration

　
Since LAS Data is a coordinate, calibration is done using the mouse at an average calibration time of 5 minutes
　　
　　
Cargo Calculation

・Perform Offloading Calculation (Before Offload Volume & After Offload Volume)
・Leftover Calculation is taken based on the Average Quality Data
　　　

　　　　
Data Export
Print the record as seen on the screen
　　
　　

Integrating ICT for Efficient Operation​

　　
Employing the use of modern LiDAR-SLAM Technology, LiSm³ increases product quality and operational safety.
Along with the following;

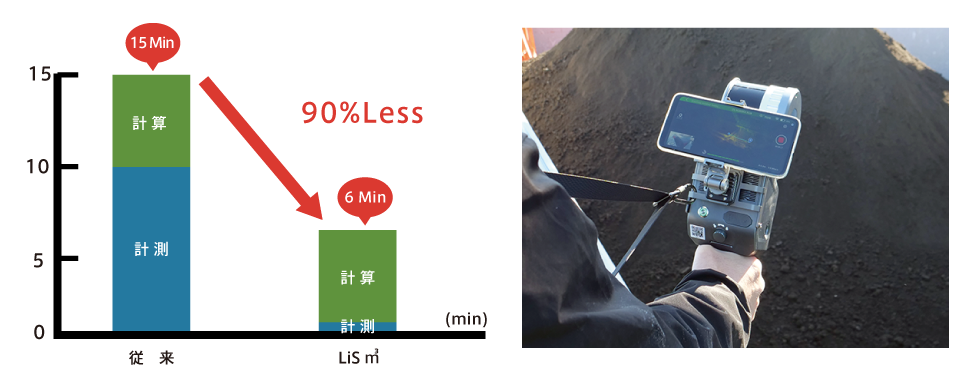

・Increasing Work Speed by ~90%
・Minimising Labour by ~70%
・Eliminate Human Error
・Reduce Workplace Risks
・Fast and Simple Calculation
　

FJD TRION P1 (LiDAR-SLAM Handy Scanner)

　　　　　　

　　　　
TRION P1 is a handheld 3D LiDAR scanner with SLAM Technology. Powerful SLAM technology allows measurements in practically any conditions, under direct sunlight, middle of night, underground or outdoor, accurate measurement can still be taken no matter where you are. Visualise the point cloud data in real time via a specialised app along with real time pathing to prevent double tracking and ensure complete measurement.
　　　

FJD TRION P1[Page Link]

SATLAB Lixel X1 (LiDAR-SLAM Handy Scanner)

　　　　　　

　　　　
SATLAB Lixel X1 is a 3D LiDAR handy scanner that comes installed with SLAM functionality. The newest version of SLAM (Simultaneous Localisation and Mapping) technology brings high resolution 3D volumetric data that pairs with innovative algorithms for the highest data improvement possible.

SATLAB Lixel X1[Page Link]

　　　
　　　　
