Millimetre Wave Radar Berth Docking System
Product Summary
- Sea
- Radar
The Millimetre Wave Radar Docking System utilises 24GHz millimetre wave radar to guide ships for docking. By installing 2 radars on the broadside of the ship, the distance to port/dock can be checked from the comfort of the cabin/bridge. Millimetre Waves are not affected by weather, hence a much safer alternative for docking on rainy days without the need for attending crew members.
Features
Millimetre Wave Radar Ship Docking System Main Features
- Get highly accurate distance, speed and angle to target
- Unaffected by weather conditions
- Cheaper than traditional method
- Small and easy to set up system
System Overview

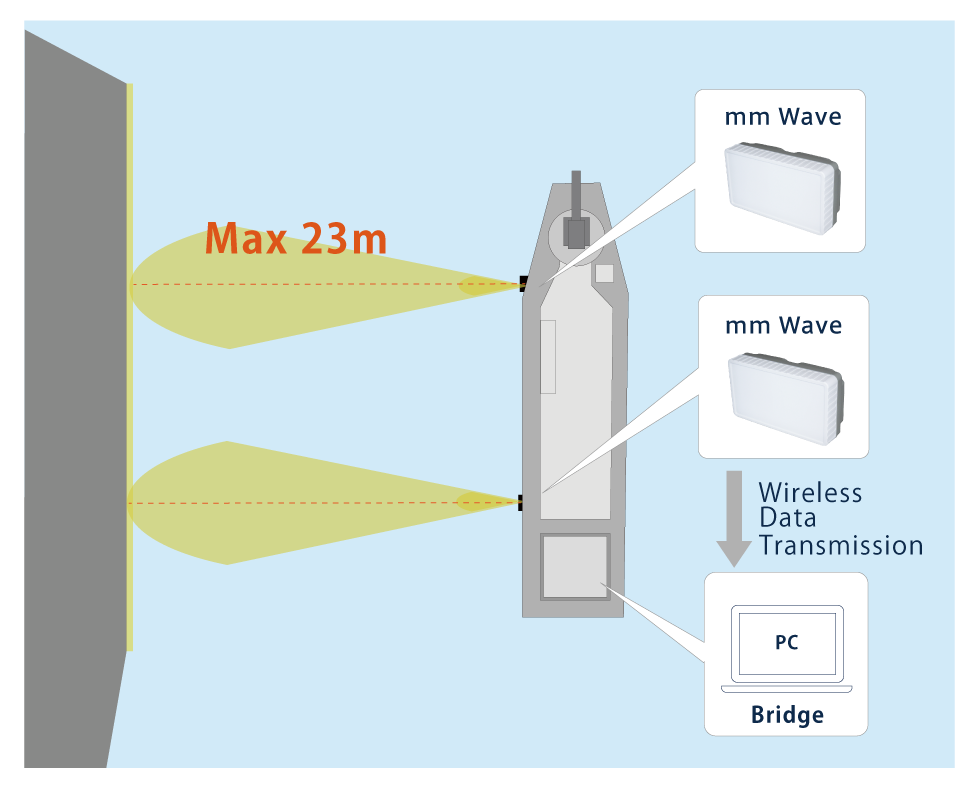

Up to 23m of Detection Range
Remotely monitors the ship’s docking operation situation remotely with perpendicularity checking feature.

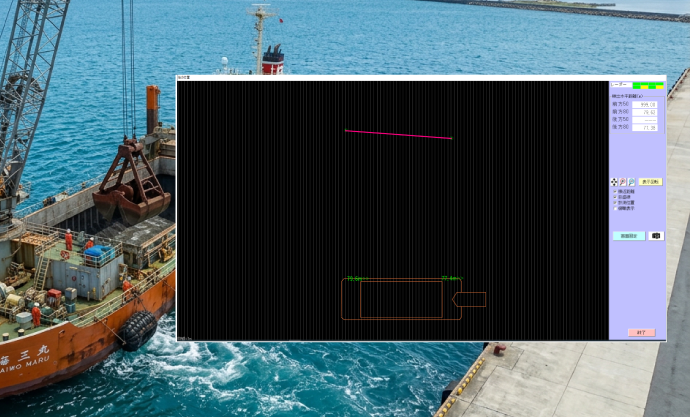

Operation Screen (Image Example)
Two Millimetre wave radars installed on the side of the ship measure the distance to the object and display the measured value.
Usable Under Harsh Weather
Using mm-wave radio waves at 20～300GHz, systems utilising mm-wave radar is not affected in adverse weather conditions like strong sunlight, fog, rain or even snow.

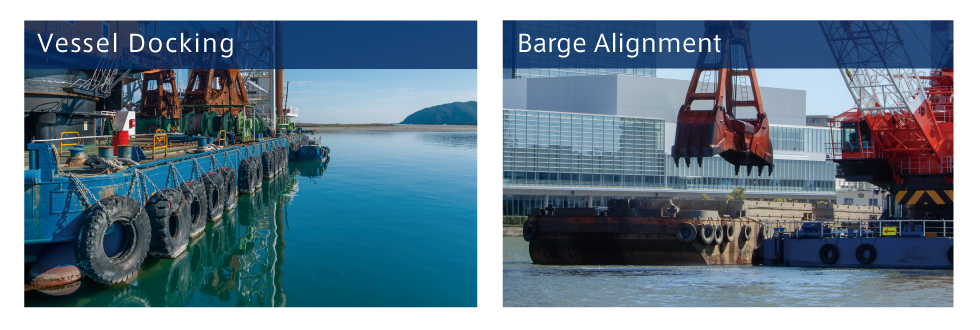

Use Case Examples (Picture Examples)
Millimetre Wave Radar Unit
Millimetre Wave Radar System uses electromagnetic waves to target an object and gain its position and velocity. Millimetre Wave Radar System is a compact system designed to be used in many outdoor utilities such as blind sight warning system, pedestrian or vehicle detection, ship manoeuvring guidance, water height monitoring system and more.
Millimetre Wave Radar Unit[Page Link]
