E2Warning Construction Site Entrance Warning System
Product Summary
- Radar
E2Warning is a warning system primarily used for site entrances. Using a predictive algorithm, the E2Warning system can predict the path of a moving objects that passes through the sensing area based on their velocity. The information of the detected object and predicted object path are shown on a big monitor informing the driver of potential dangers around the corner. E2Warning is unaffected by bad weather.
Features
E2Warning Main Features
- Detection and Path Prediction of Moving Objects
- Visual Warning via a Large Display Monitor
- Specific Detection Range can be Tuned
- Unaffected by Weather

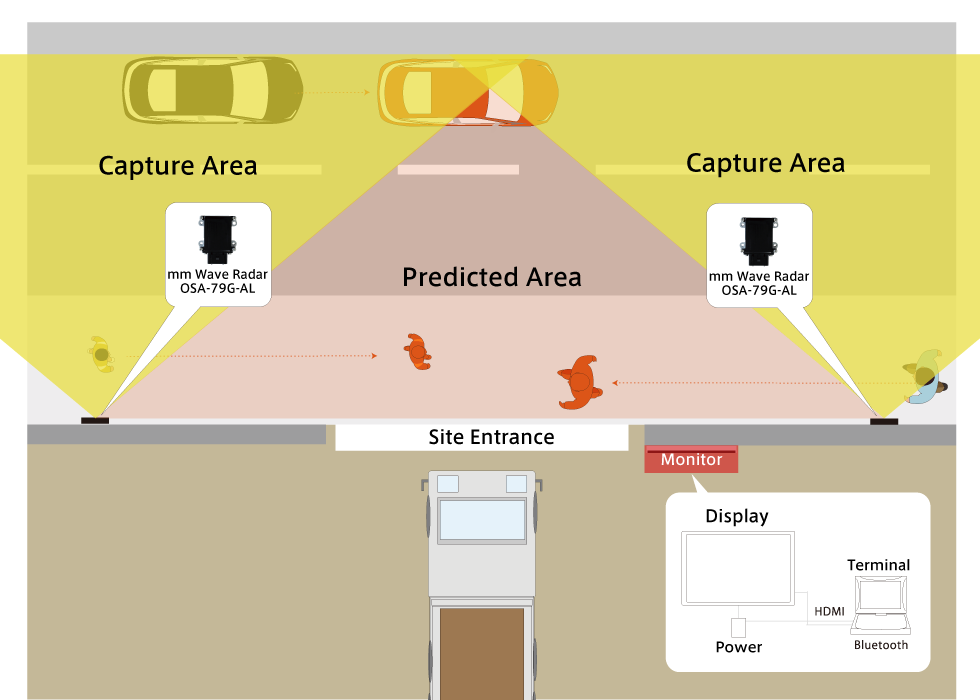

System Overview (Image Example)
Detection and Path Prediction of Cars and Pedestrians
The E2Warning system can detect and predict the object movement based on speed data gathered while the object is in motion while within the sensor detection range using the OSA-79G-AL Millimetre Wave Radar. The data is streamed via bluetooth to a PC. The data is then processed and displayed via HDMI to a large monitor showing the path of the object.
Use Image (Image Examples)
Large Monitor
Warning Lights
Once measurements are gathered, the current trajectory of the hazard (Pedestrians/Cars) are displayed on a large monitor. If a monitor is not available, warning lights can also be used instead.
Monitor Display (Image Example)
Real time positional information, predictive path is done through gathered speed measurement.
Usable Under Harsh Weather
Using mm-wave radio waves at 20～300GHz, systems utilising mm-wave radar is not affected in adverse weather conditions like strong sunlight, fog, rain or even snow.
Millimetre Wave Radar Unit
Millimetre Wave Radar System uses electromagnetic waves to target an object and gain its position and velocity. Millimetre Wave Radar System is a compact system designed to be used in many outdoor utilities such as blind sight warning system, pedestrian or vehicle detection, ship manoeuvring guidance, water height monitoring system and more.
Millimetre Wave Radar Unit[Page Link]
