Millimetre Wave Radar Ship-to-Ship Docking System

Product Summary

The Millimetre Wave Radar Ship-to-Ship Docking System is built for supporting operations such as dredging where a box barge needs to position itself next to a dredger. This system provides a remote accurate distance measurement, allowing for ship steering and monitoring to be done simultaneously without the need of additional operators.

Features

Ship-to-Ship Docking System Main Features

• Safely Operate Under Bad Weather
• Easily Replaceable Battery
• 2 Types of Radar for Reliable Measurement
• Front and Back Differentiation

System Image (Dredging)

Dual Fixed Radars Manoeuvring Support

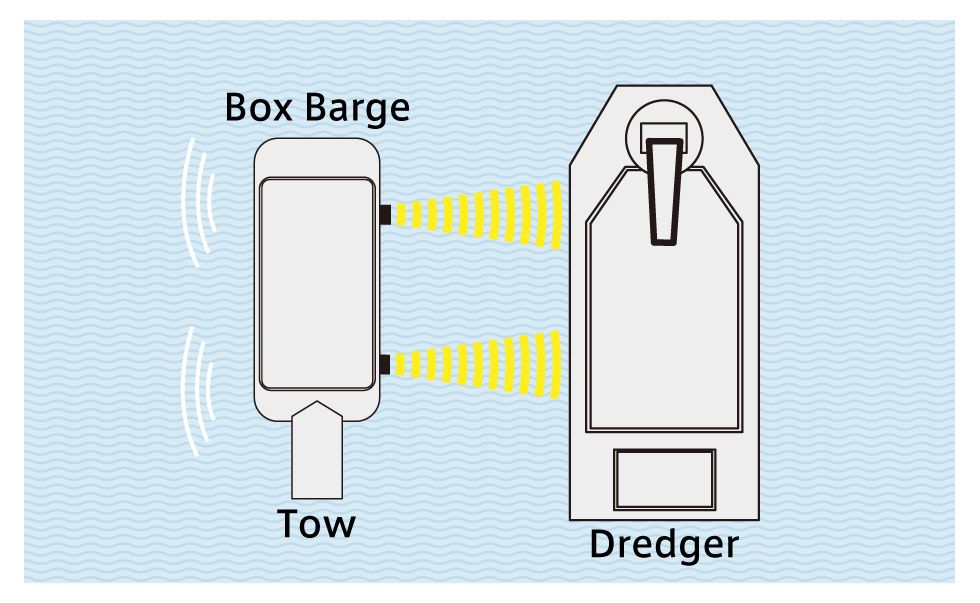

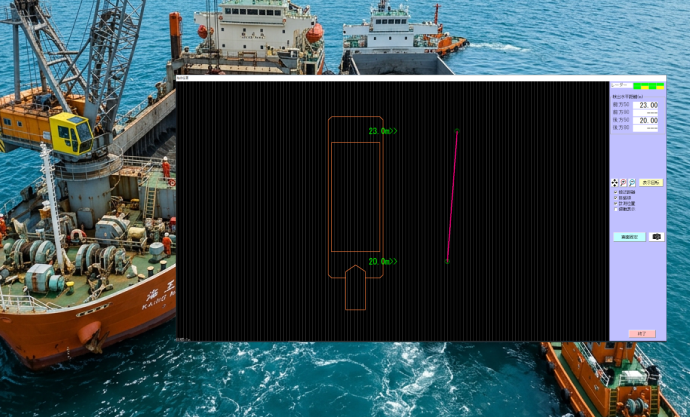

Ship-to-Ship uses 2 radars installed to the back and front of the vessel for a maximum of 23m range measurements. Ship distance and alignment is displayed on the monitor utilising the telemetry data gathered from the sensors.

Operation Image

　　　
Distance resolution of 10cm.
　

System Overview (Box Barge)

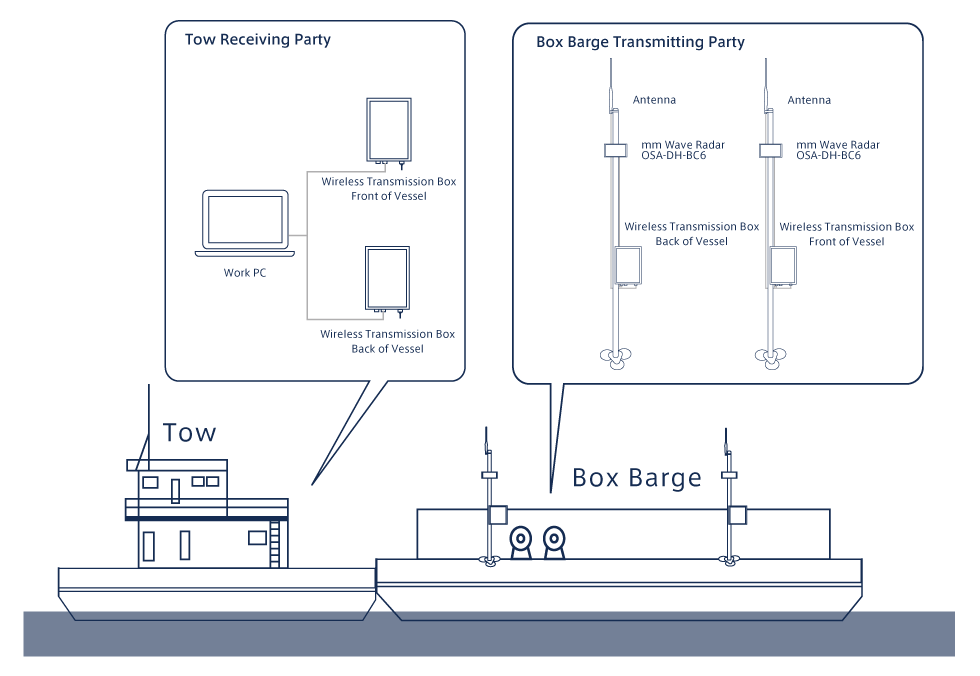

Two sensors are placed at the front and the back of the Box Barge alongside wireless communication devices that communicate with the operator in the bridge wirelessly. Real-time measurements are displayed on the PC.

All in One Unit (Transmitting Side)

Plug and Play System
Since the whole system runs on battery, external power supply is not needed. Simply set and operate.
　　

Usable Under Harsh Weather

Using mm-wave radio waves at 20～300GHz, systems utilising mm-wave radar is not affected in adverse weather conditions like strong sunlight, fog, rain or even snow.
　

Millimetre Wave Radar Unit

Millimetre Wave Radar System uses electromagnetic waves to target an object and gain its position and velocity. Millimetre Wave Radar System is a compact system designed to be used in many outdoor utilities such as blind sight warning system, pedestrian or vehicle detection, ship manoeuvring guidance, water height monitoring system and more.
