P-Sight forF Optical Pile Driving Measurement System
Product Summary
- i-Con
P-Sight is a pile movement measuring system that utilises a high speed camera to capture pile movement and automatically calculate parameters such as the bearing capacity. P-Sight drastically reduces workplace risks, by not having any personnel working directly under the hammer, while also reducing errors caused by manual recording. Record and report pile movement, penetration and rebound with easy and instant bearing capacity derivation and reporting tool. Compatible with both steel pile and PHC pile.
Features
P-Sight Main Features
- Distance Monitoring for Improved Safety
- Eliminate Errors due to Manual Recording
- Calculate Bearing Capacity using Rebound and Penetration Data
- Easy to Operate
- Compatible with Multiple Format (Hiley, 5S, Douji)
System Overview

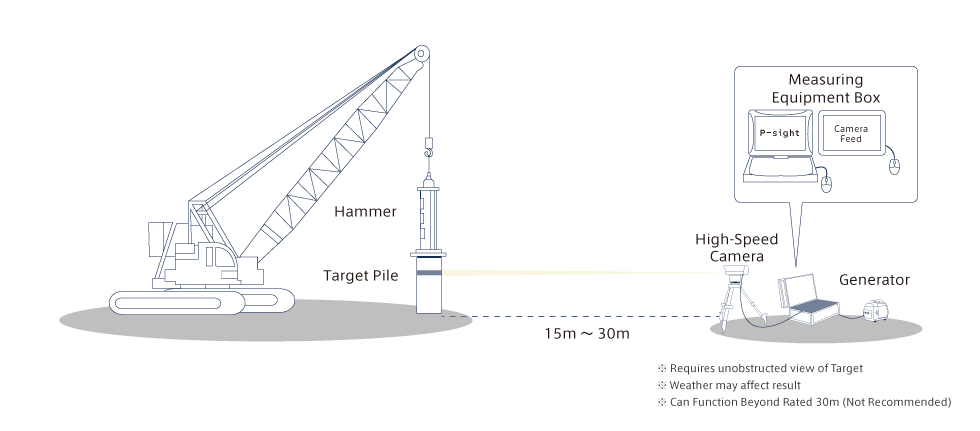

Monitor pile movements from a distance accurately by using a high speed camera pointing at the pile. As the pile is being driven, both the penetration and rebound data is gathered and recorded, while at the same time, the bearing capacity is also calculated. Minimising risks and avoiding injuries caused by manual measurement.

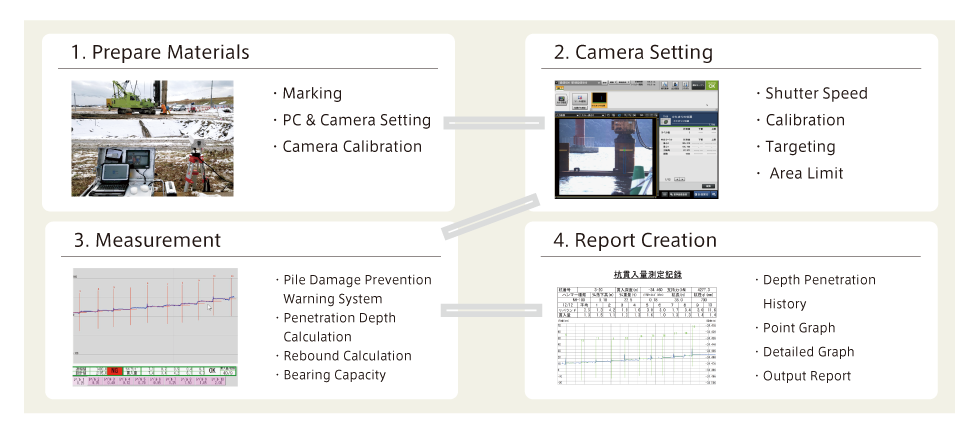

Measurement Flowchart (Picture Example)

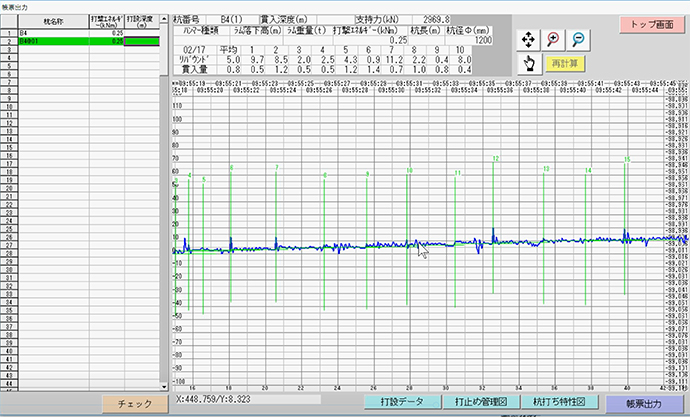

The P-Sight System tracks the target pile by locking on to the marked pile header with a high speed camera. The Y position of which is recorded and put into a graph displaying penetration data and rebound data.
Using this data, it is possible to calculate the bearing capacity with only a single drive with automatic damage prevention warning. Easily create reports with the built in reporting tool.
Pile Damage Prevention
Keep track of pile damage risks in real time as the piling data is collected and calculated.
Remote Support
Quickly and easily support and troubleshoot operations remotely in the event that trouble arises.
